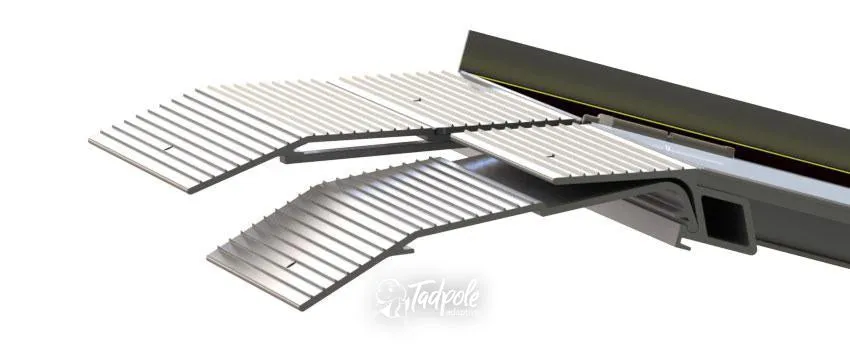

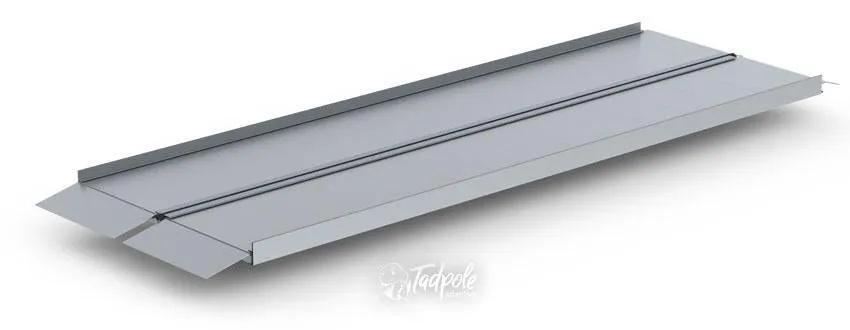

This ultra-strong, single-fold ramp provides the safety and strength required while remaining lightweight and portable. The smooth and quiet action of the live hinge – a continuous full length low profile hinge – adds strength and stability to the ramp. Ergonomically designed flexible, non-breakable handles offer convenient carrying and a comfortable grip. Features an extruded non-skid tread for superior traction, and a self-adjusting bottom transition plate for easy conversion from ramp to ground. Welded construction provides long-term durability and safety. Unfolds to a 30" wide platform. Features an 800 pound weight capacity and three-year limited warranty. Made in the USA.
- Ergonomically designed flexible, non-breakable handles offer convenient carrying and a comfortable grip.
- The hinge features a no-pinch, non-protruding live hinge for safe, silent, and maintenance free operation.
- Available in 3-, 4-, 5-, 6 foot lengths.
- 3 year warranty
- Available Top Lip Extension (TLE) will increase the reach of the top lip from 3" to 9".
- See our "Materials" tab for a measurement guide to determine the proper length.
| SPECIFICATIONS | SUITCASE SS2 |
SUITCASE SS3 |
SUITCASE SS4 |
SUITCASE SS5 |
SUITCASE SS6 |
SUITCASE SS7 |
SUITCASE SS8 |
|---|---|---|---|---|---|---|---|
| Made of aluminum | √ | √ | √ | √ | √ | √ | √ |
| Non-skid surface | √ | √ | √ | √ | √ | √ | √ |
| Built-in carrying handle | √ | √ | √ | √ | √ | √ | √ |
| Usable size | 2x30" | 3'x30" | 4'x30" | 5'x30" | 6'x30" | 7'x30" | 8'x30" |
| Folded size ( L x W x H ) | 24"x15"x4" | 36"x15"x4" | 48"x15"x4" | 60"x15"x4" | 72"x15"x4" | 84"x15"x4" | 96"x15"x4" |
| Weight ( lbs.)* | 11 | 17 | 23 | 29 | 34 | 41 | 47 |
| Weight capacity ( lbs.) | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| For wheelchairs & scooters | √ | √ | √ | √ | √ | √ | √ |
| Usage guidelines ** | Curbs, 1 step |
Curbs, 1 step |
Curbs, 1-2 steps |
Curbs, 1-2 steps, some minivans |
1-3 steps, some minivans & SUVs |
1-3 steps, some minivans & SUVs |
2-3 steps, some minivans & SUVs |
